Product Name

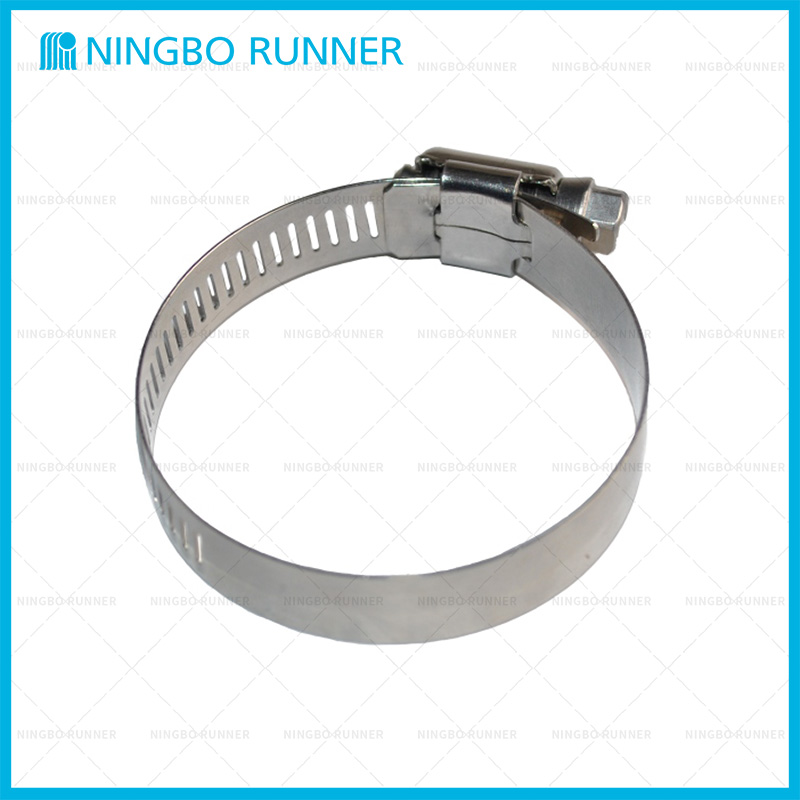

501501 Type F Worm Drive Hose Clamp

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material Stainless Steel
  • Transport Package Exported Package
  • Premium grade seal stainless steel hose clamps are made to exacting SAE standards
  • Strong mechanical joint between band and housing produces high clamp force with moderate tightening of screw

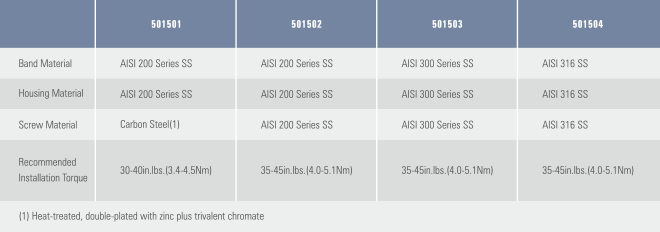

  • 200/300 series stainless steel band, housing and screw construction provides excellent corrosion resistance
  • Suitable for use in multiple applications including sealing and bundling
  • 501502/501503/501504 will meet different material requirements
•    Premium grade seal stainless steel hose clamps are made to exacting SAE standards
•    Strong mechanical joint between band and housing produces high clamp force with moderate tightening of screw
•    200/300 series stainless steel band, housing and screw construction provides excellent corrosion resistance
•    Suitable for use in multiple applications including sealing and bundling
•    501502/501503/501504 will meet different material requirements
