Product Name

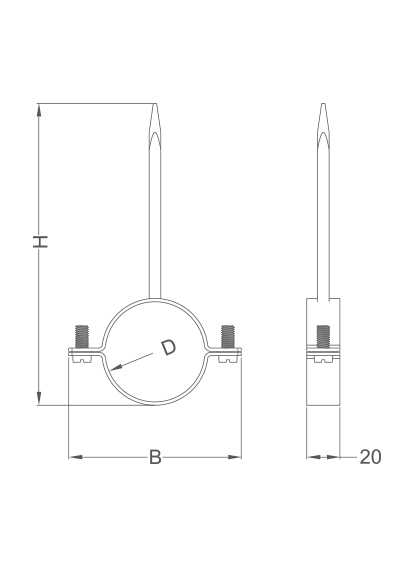

501311 Nail-in Clamp

Model Number

Download Link
Parameter
Features
  • Flexible or Rigid Rigid
  • Material Steel
  • Transport Package Exported Package
  • Connection Flange
  • Structure Vertical
  • Used For Mounting Of Pipes To The Walls (Vertical/Horizontal) Ceilings And Floors
  • Material: Steel
  • Finish: Electro Zinc- Plated

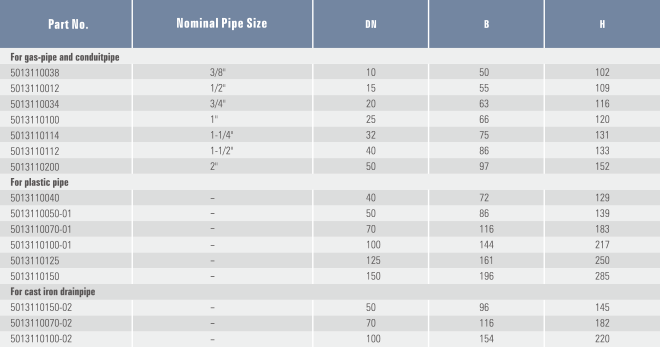

  • Size Ranger: 3/8" through 2"
  • M6 Side Screws With Plastic Washer
· Used For Mounting Of Pipes To The Walls (Vertical/Horizontal) Ceilings And Floors
· Material: Steel
· Finish: Electro Zinc- Plated
· Size Ranger: 3/8" through 2"
· M6 Side Screws With Plastic Washer
