Product Name

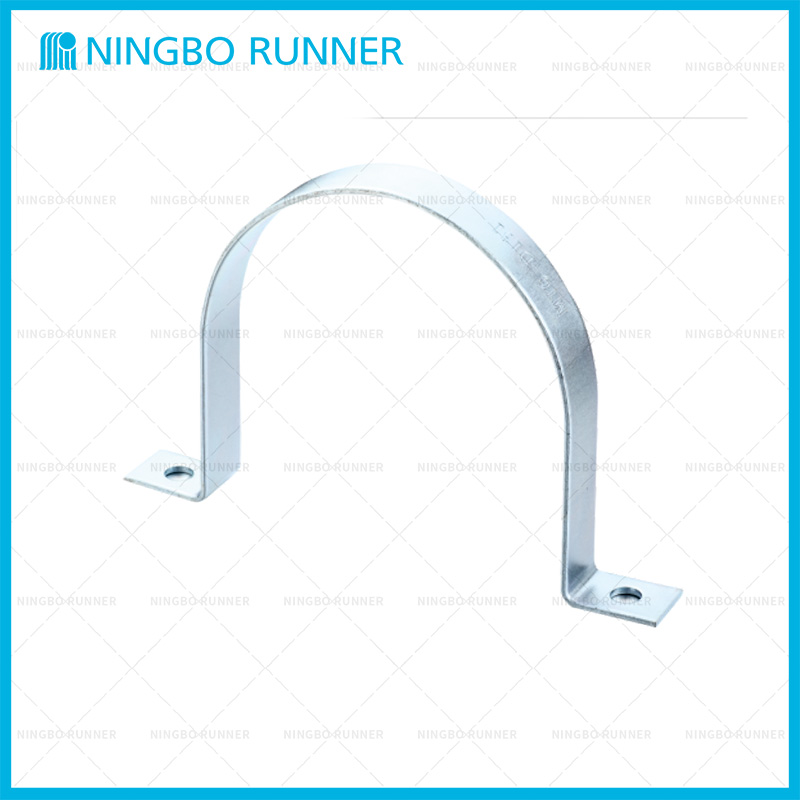

501328 Heavy Duty U-Strap

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material Steel
  • Transport Package Exported Package
  • Material: Steel
  • Size Range: 1/2" Through 24"
  • Finish: Electro-Zinc Plated or Epoxy Coating
  • M6 Side Screws With Two Pieces Of Gasket
  • Designed And Recommended For The Mounting Of Insulated Or Non-lnsulated Pipes, And Can Be Used With Rubber Supports Inserts
  • Comply With Federal Specification WW-H-171E And American Manufactures Standardization Society MSS SP-69 & SP58
•    Material: Steel
•    Size Range: 1/2" Through 24"
•    Finish: Electro-Zinc Plated or Epoxy Coating
•    M6 Side Screws With Two Pieces Of Gasket
•    Designed And Recommended For The Mounting Of Insulated
Or Non-lnsulated Pipes, And Can Be Used With Rubber Supports Inserts
•    Comply With Federal Specification WW-H-171E And American Manufactures Standardization Society MSS SP-69 & SP58
