Product Name

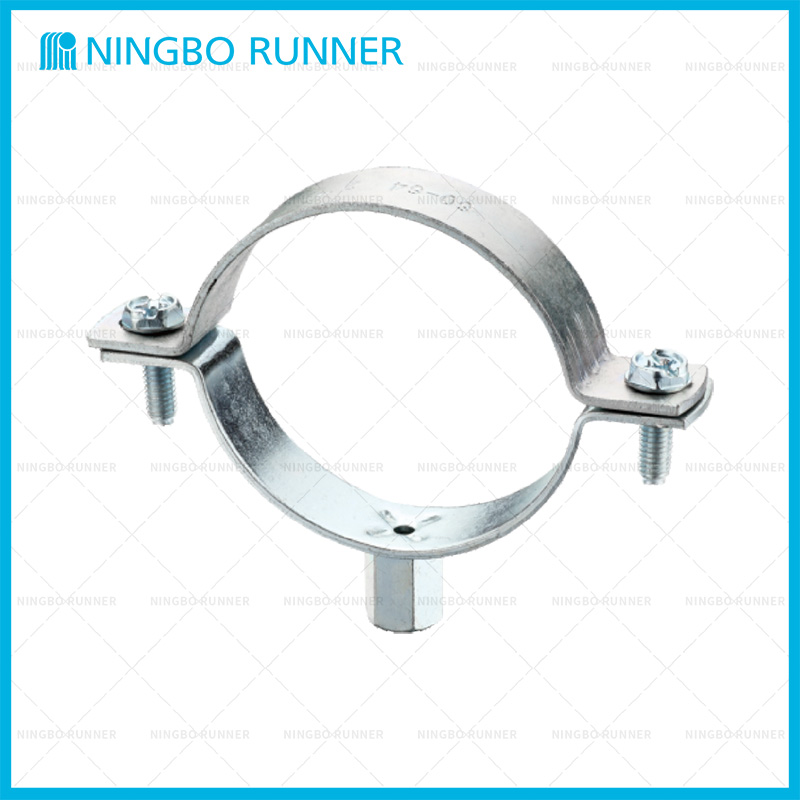

501305 Split Pipe Clamp (M8+M10)

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material Carbon Steel
  • Transport Package Exported Package
  • Material: Carbon Steel
  • Size Range: 3/8" through 8"
  • Finish: Electro-zinc Plated
  • M6 Side Screws With Two Pieces of Gasket
  • M8, M10 and M10 + M12 Nut is optional
· Material: Carbon Steel
· Size Range: 3/8" through 8"
· Finish: Electro-zinc Plated
· M6 Side Screws With Two Pieces of Gasket
· M8, M10 and M10 + M12 Nut is optional
