Product Name

402501T T-Bar Aluminum Egg Crate Filter Grille

Model Number

402501T

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply or Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignEgg Crate
  • MaterialAluminum

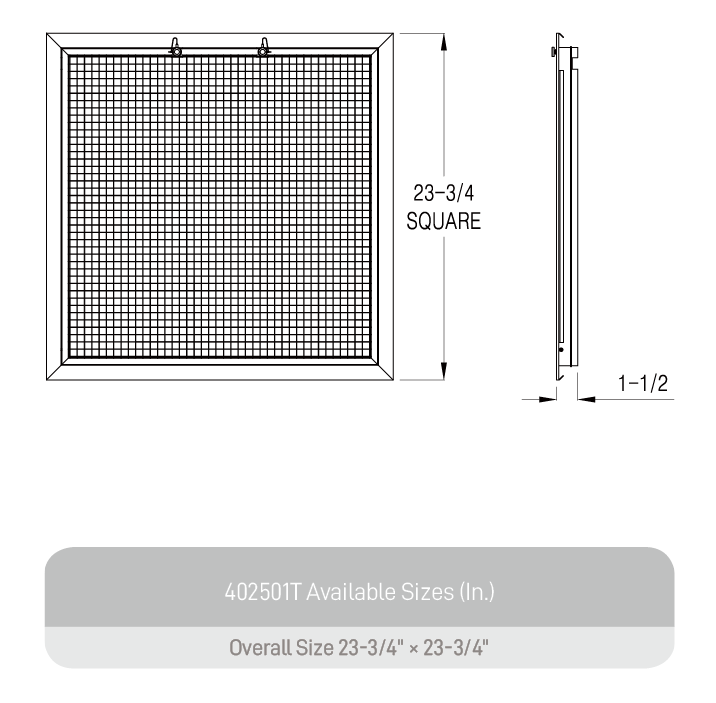

  • Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
  • Aluminum construction
  • Use for T-bar ceiling
  • 1/2' grid core
  • Hinged on the bottom edge, face is removable
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish
