Product Name

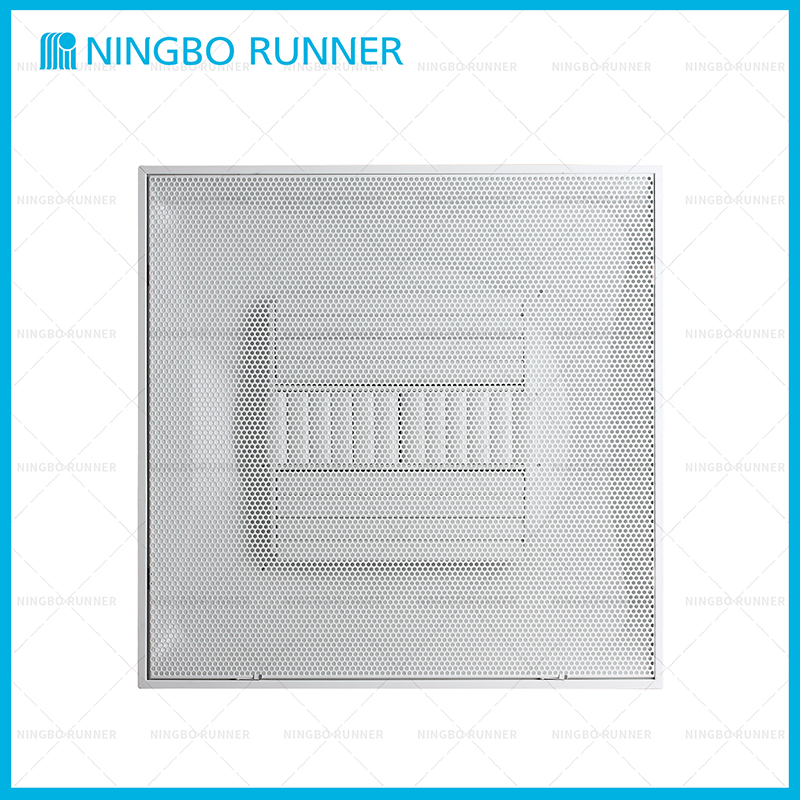

402307C T-Bar Steel Curved Blade Perforated Supply with Collar

Model Number

402307C

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply or Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignCurved
  • MaterialSteel

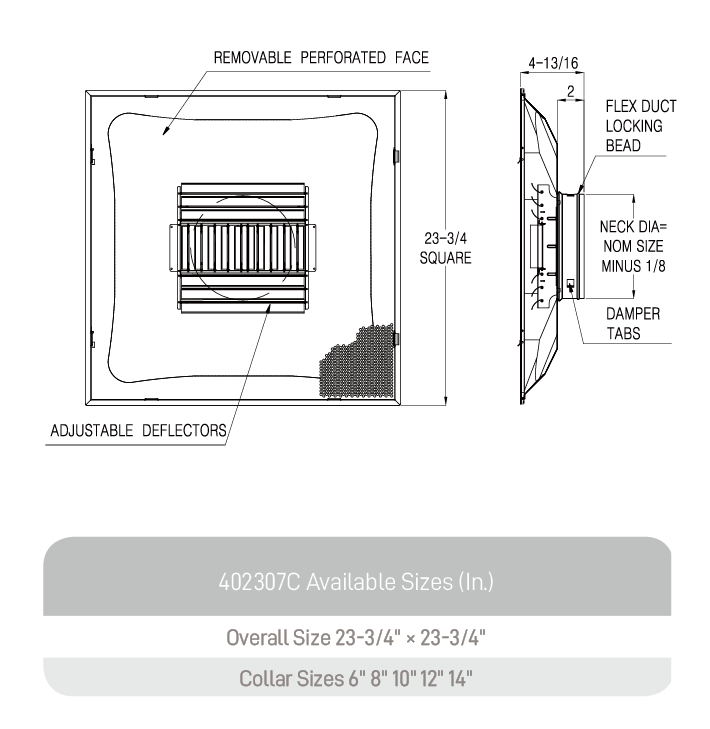

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction
  • Use for T-bar ceiling
  • Four-way, perforated faceplate
  • Adjustable curved-blade deflectors
  • Removable hinged face for easy air flow adjustment and cleaning
  • Formed metal back panel
  • Fixed collar 6' to 14'
  • Accept model #403101 butterfly damper (6'-14')
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish
