Product Name

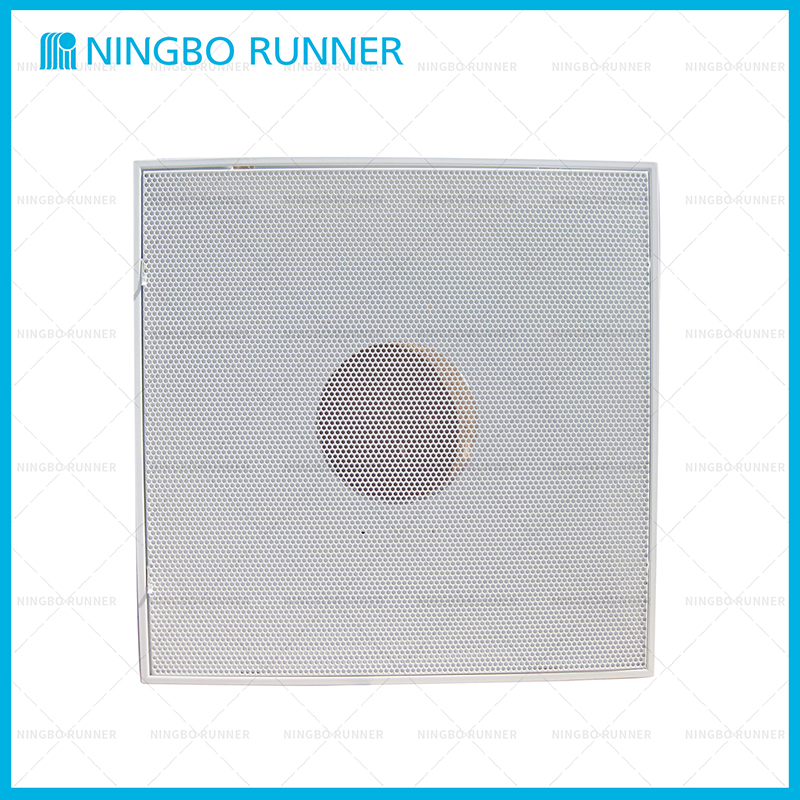

402214C T-Bar Steel Perforated Return with Fixed Collar

Model Number

402214C

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignPerforated
  • MaterialSteel
  • Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
  • Steel construction
  • Use for T-bar ceiling
  • Perforated faceplate
  • Removable hinged face for easy air flow adjustment and cleaning

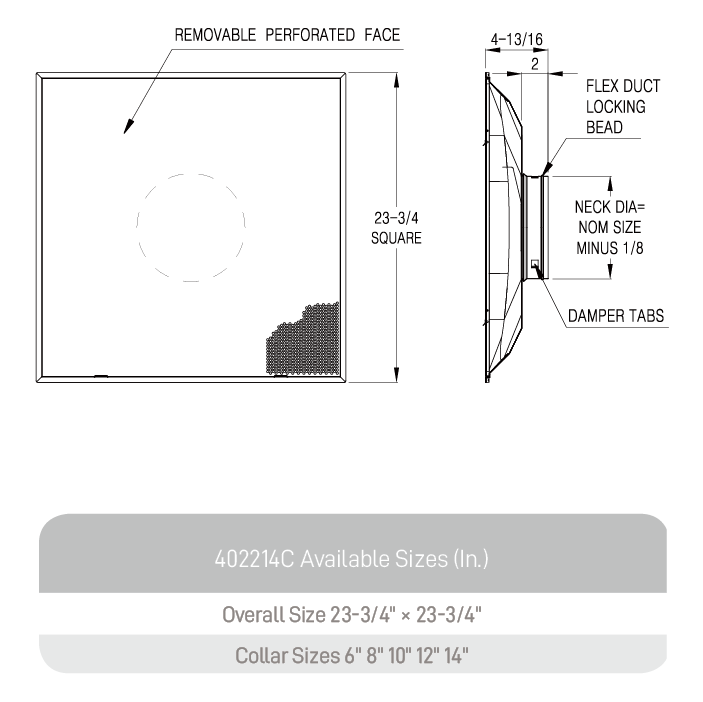

  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • Accept model #403101 butterfly damper (6'-14')
  • Fixed collar 6' to 14'
  • Formed metal back panel
  • White durable finish
