Product Name

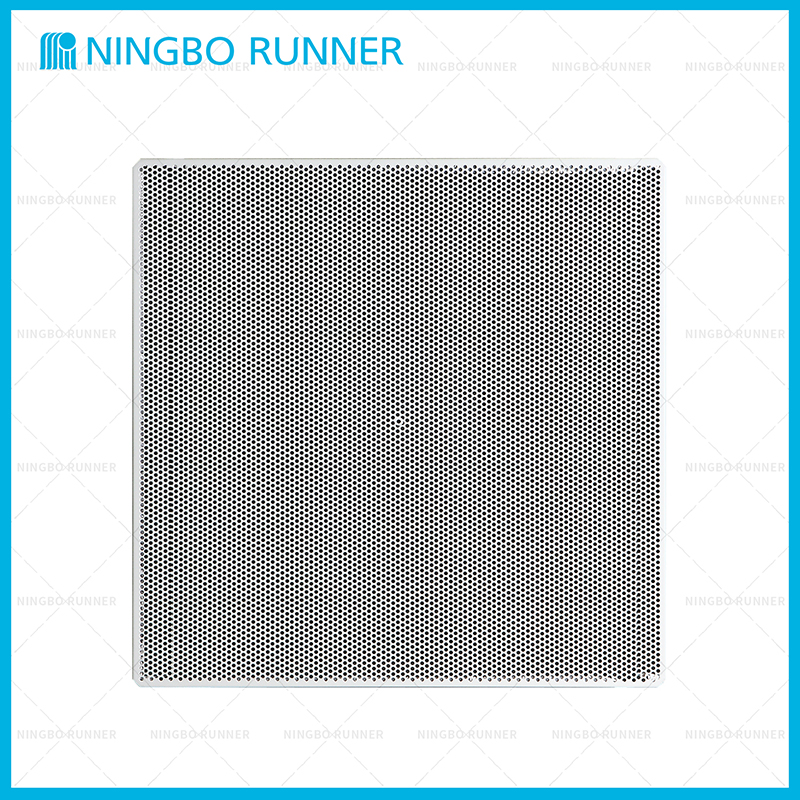

402211 T-Bar Steel Perforated Supply Diffuser

Model Number

402211

Download Link
Parameter
Features
Download
  • FuctionFor Air Supply
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignPerforated
  • MaterialSteel

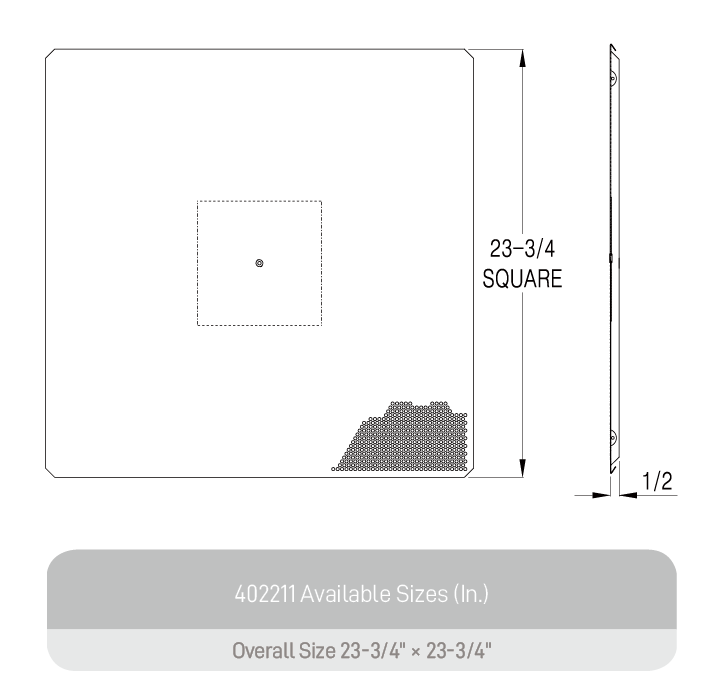

  • Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
  • Steel construction
  • Use for T-Bar ceiling
  • Perforated faceplate
  • Fixed square deflector
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish
