Product Name

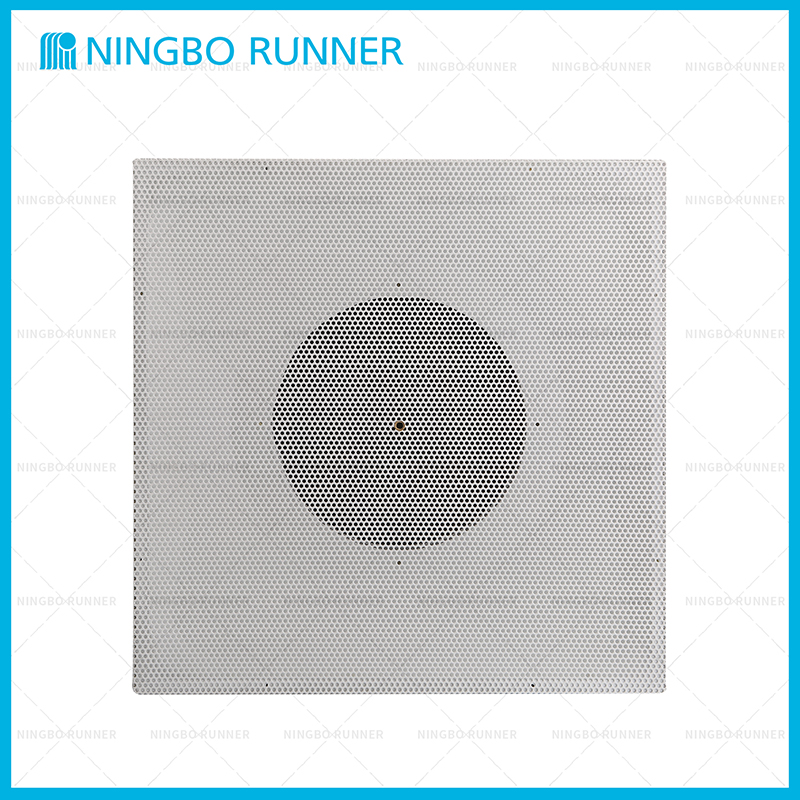

402408CR6 T-Bar Steel Perforated Supply Diffuser with Collar and R6 Insulation

Model Number

402408CR6

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignPerforated
  • MaterialSteel

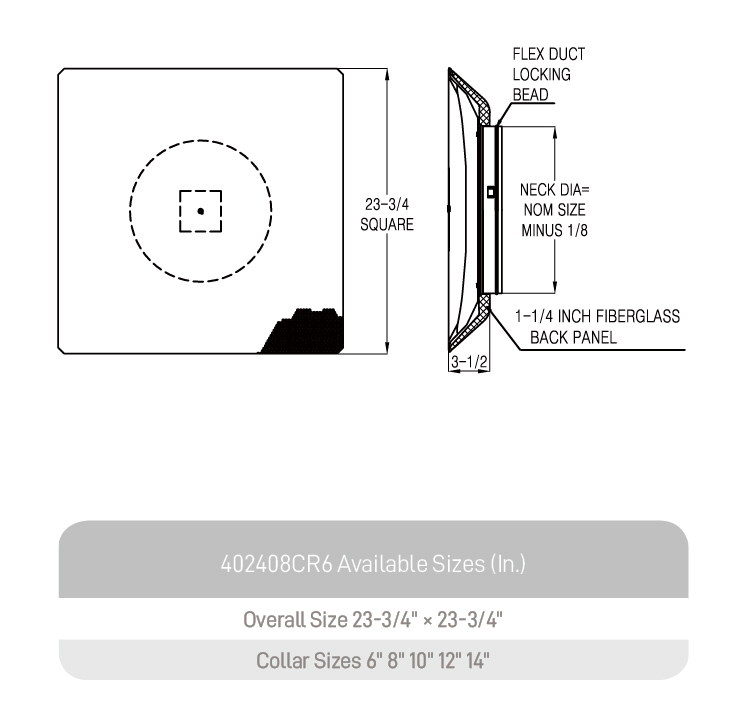

  • Product Dimension 23-3/4'×23-3/4' (24“×24
  • Steel construction
  • Use for T-Bar ceiling
  • Perforated faceplate
  • Fixed square deflector
  • With R6 insulation
  • Formed metal back panel
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • Accept model #403101 butterfly damper (6'-14')
  • White durable finish
