Product Name

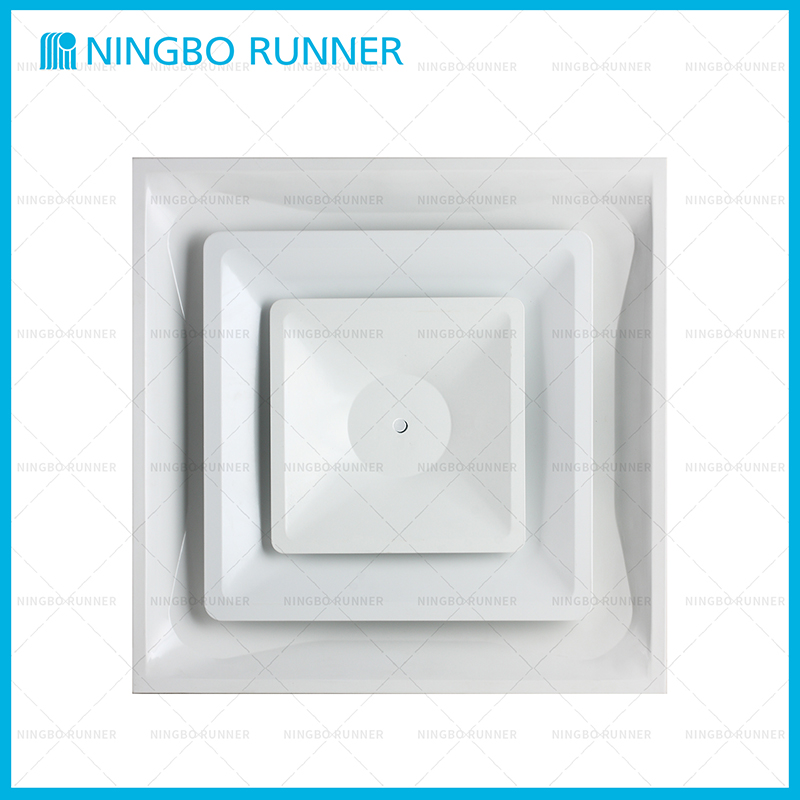

402602C T-Bar 2-Cone Fixed-Pattern Diffuser with Collar

Model Number

402602C

Download Link
Parameter
Features
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • Design2-Cone
  • MaterialSteel

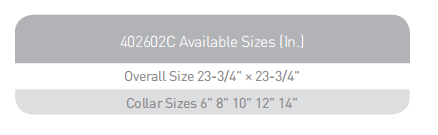

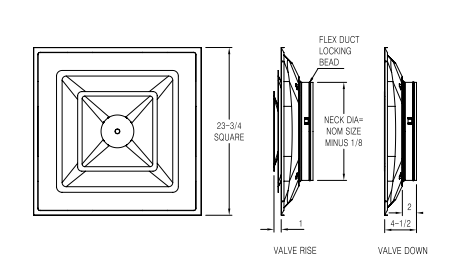

  • DimensionOverall size 23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction
  • Use for T-bar ceiling
  • Two-cone fixed core
  • 360-degree air diffusion
  • Can match insulation
  • Fixed collar 6' to 14'
  • Accept model #403101 butterfly damper (6'-14')
  • Overall size 23-3/4'×23-3/4' (24'×24' openings)
  • White durable finish
