Product Name

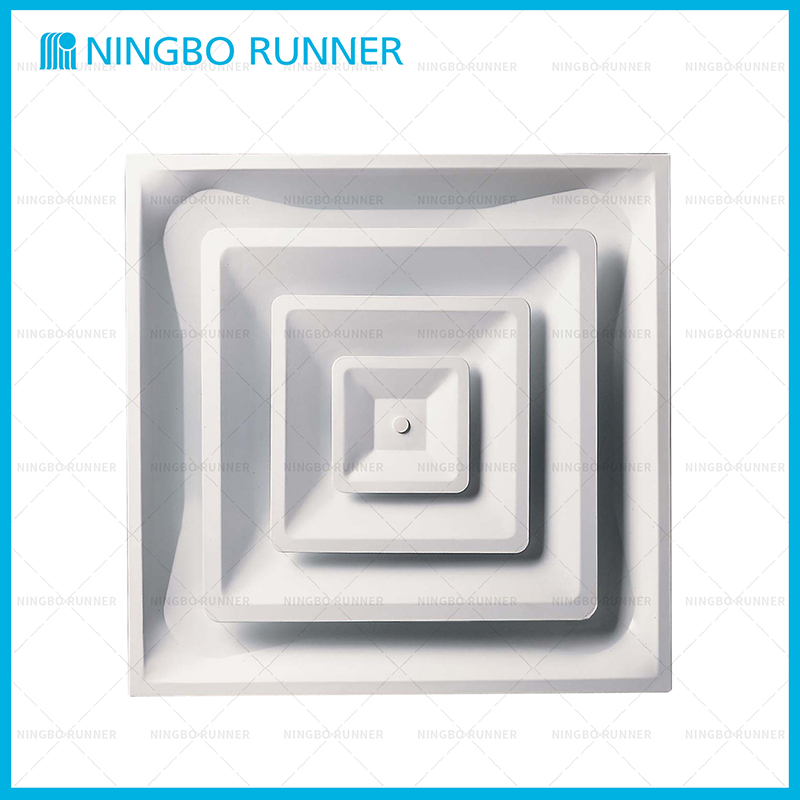

402603R6 T-Bar Steel 3-Cone Fixed-Pattern Diffuser without Collar, with R6 Insulation

Model Number

402603R6

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • Design3-Cone
  • MaterialSteel

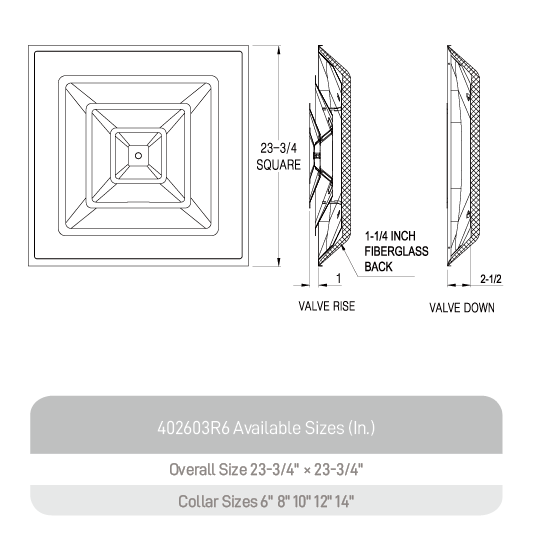

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction
  • Use for T-bar ceiling
  • Three-cone fixed core
  • 360-degree air diffusion
  • With R6 insulation
  • Accept model #403302 snap in collar ring (6'-14')
  • Overall size 23-3/4'×23-3/4' (24“×24"openings)
  • White durable finish
