Product Name

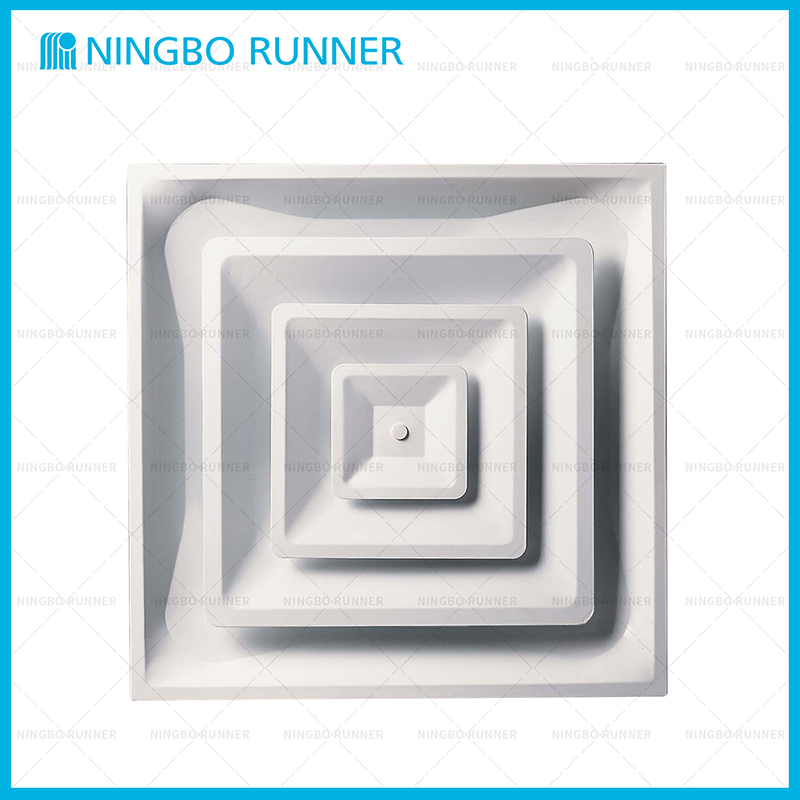

402414CI T-Bar Steel 3-Cone Fixed -Pattern Diffuser with Collar and Insulation

Model Number

402414CI

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply or Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • Design3-Cone
  • MaterialSteel

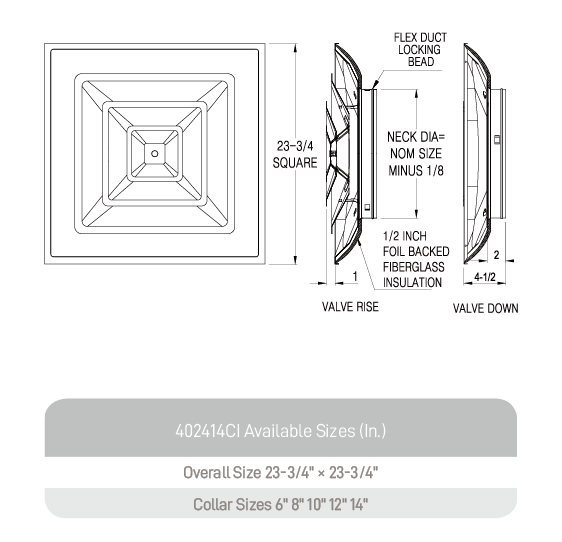

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction
  • Use for T-bar ceiling
  • With insulation
  • Three-cone fixed core
  • Fixed collar 6' to 14'
  • 360-degree air diffusion
  • Accept model #403101 butterfly damper (6'-14')
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish
