Product Name

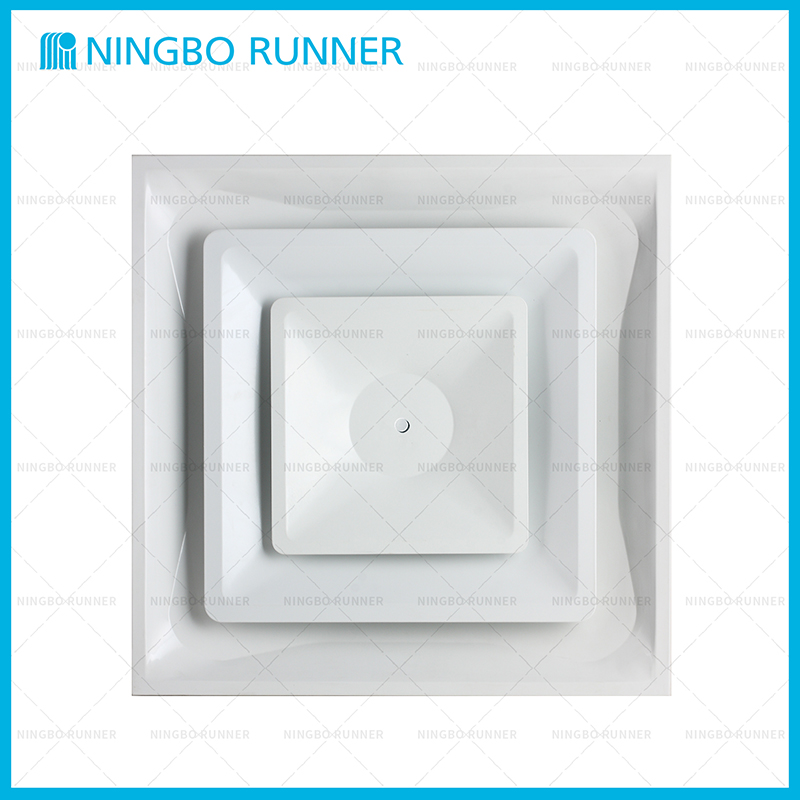

402413CR6 T-Bar Steel 2-Cone Fixed-Pattern Diffuser with Collar and R6 Insulation

Model Number

402413R6

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • Design2-Cone
  • MaterialSteel

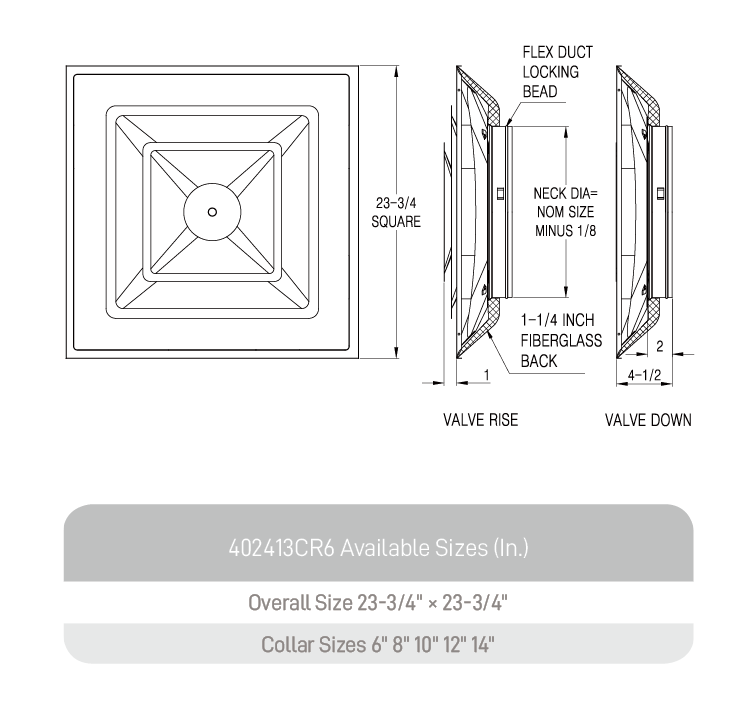

  • Product Dimension23-3/4'×23-3/4' (24'×24' openings)
  • Steel construction
  • Use for T-bar ceiling
  • Two-cone fixed core
  • FixeAd collar 6' to 14'
  • 360-degree air diffusion
  • With R6 insulation
  • Accept model #403101 butterfly damper (6'-14')
  • White durable finish
