Product Name

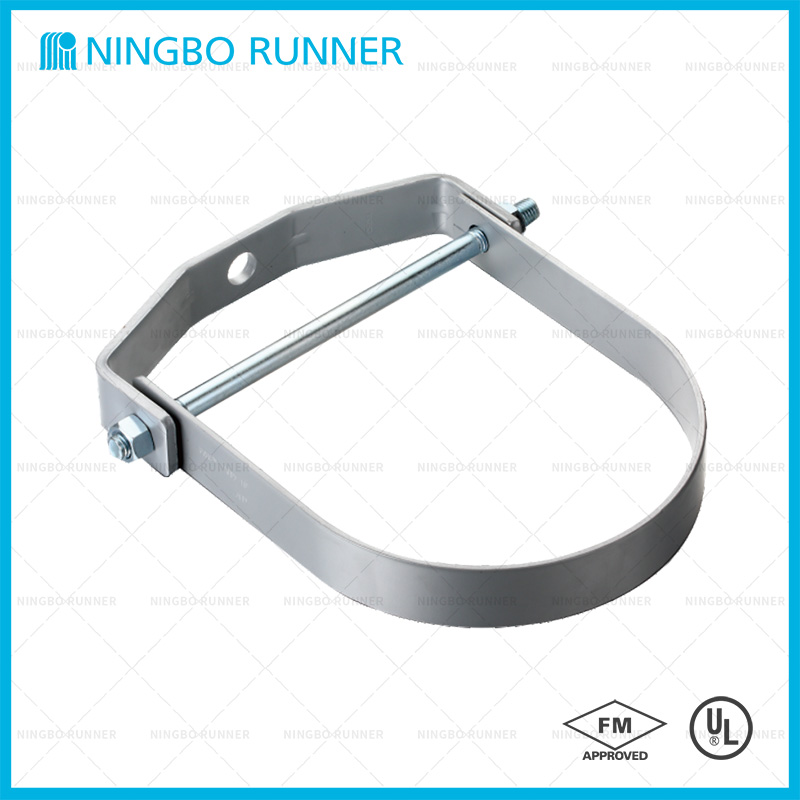

501101 Heavy Duty Clevis Hanger(RN603)

Model Number

Download Link
Parameter
Features
  • ConnectionFlange
  • Structure Vertical
  • Flexible or RigidRigid
  • Material Carbon Steel
  • StandardUL & FM Approved
  • Specification MSS SP-69 &SP-58,WW-H-171E
  • Transport Package Exported Package
  • Material: Carbon Steel
  • Size Range: 1/2" through 24"
  • Finish: Zinc Colored Epoxy Plated
  • UL/FM Approved
  • Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
· Heavy Duty Adjustable Clevis Hanger
· Material: Carbon Steel
· Size Range: 1/2" through 24"
· Finish: Zinc Colored Epoxy Plated
·UL/FM Approved
· Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
