Product Name

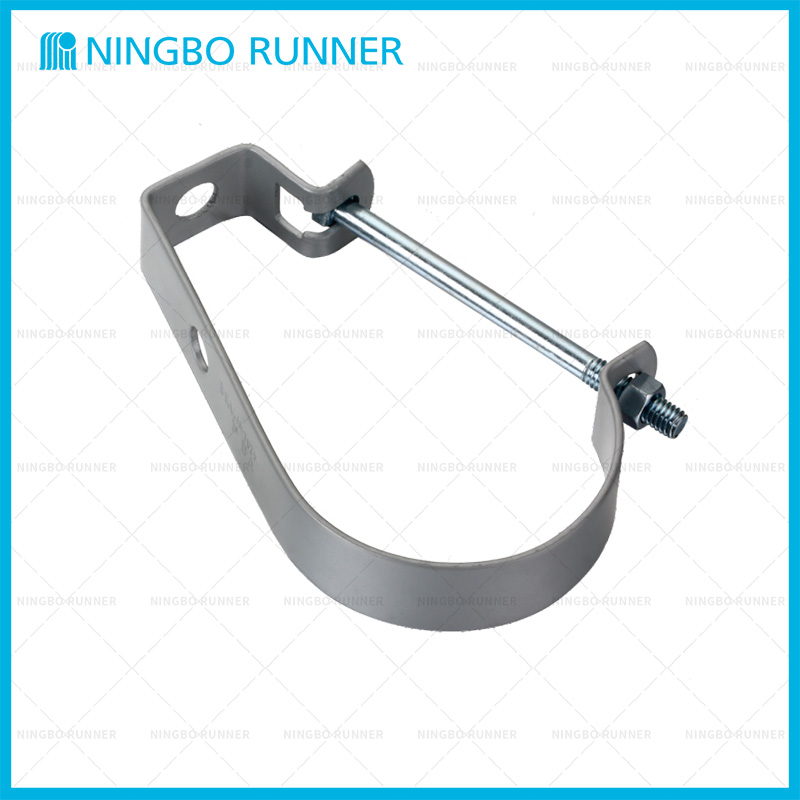

501204 J-Hanger

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material Carbon Steel
  • Specification MSS SP-69 &SP-58,WW-H-171E
  • Transport Package Exported Package
  • Adjustable J -Hanger (Heavy Duty)
  • Material: Carbon Steel
  • Size Range: 1/2" through 8"
  • Finish: Zinc Colored Epoxy Plated
  • Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
      ·  Adjustable J -Hanger (Heavy Duty)
      ·  Material: Carbon Steel
      ·  Size Range: 1/2" through 8"
      ·  Finish: Zinc Colored Epoxy Plated
      ·  Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
