Product Name

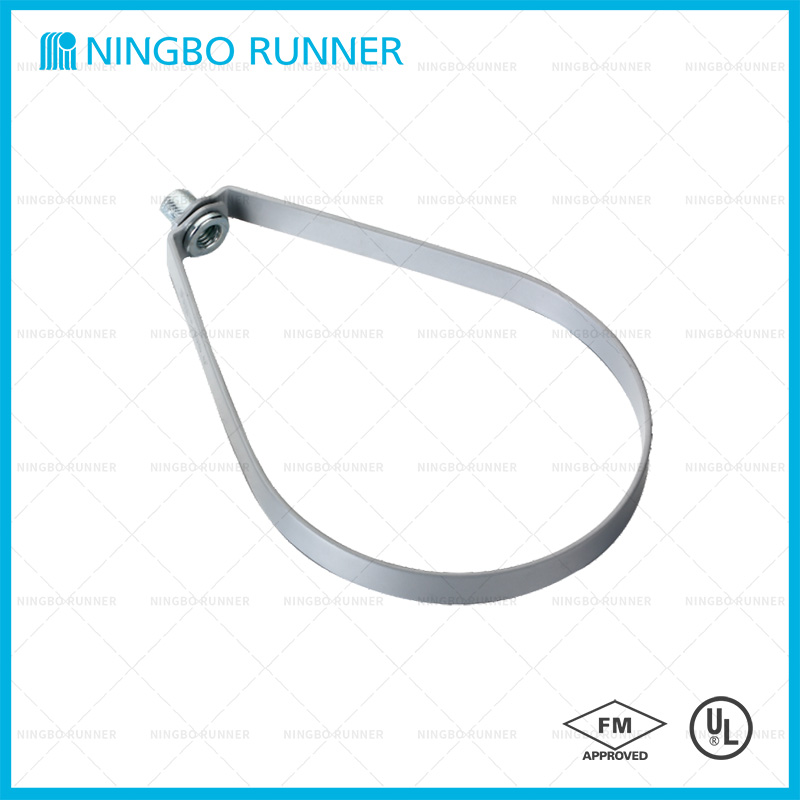

501201 Swivel Ring Hanger(RN606)

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material Carbon Steel
  • Standard UL & FM Approved
  • Specification MSS SP-69 &SP-58,WW-H-171E
  • Transport Package Exported Package
  • Adjustable Swivel Ring Hangers
  • Material: Carbon Steel
  • Size Range: ½" through 8"
  • Finish: Zinc Colored Epoxy Plated
  • UL & FM Approved
  • Comply with Federal Specification WW-H-171 E and American Manufactures Standardization Society MSS SP-69 & SP58
•     Adjustable Swivel Ring Hangers
•     Material: Carbon Steel
•     Size Range: ½" through 8"
•     Finish: Zinc Colored Epoxy Plated
•     UL & FM Approved
•     Comply with Federal Specification WW-H-171 E and American Manufactures Standardization Society MSS SP-69 & SP58
