Product Name

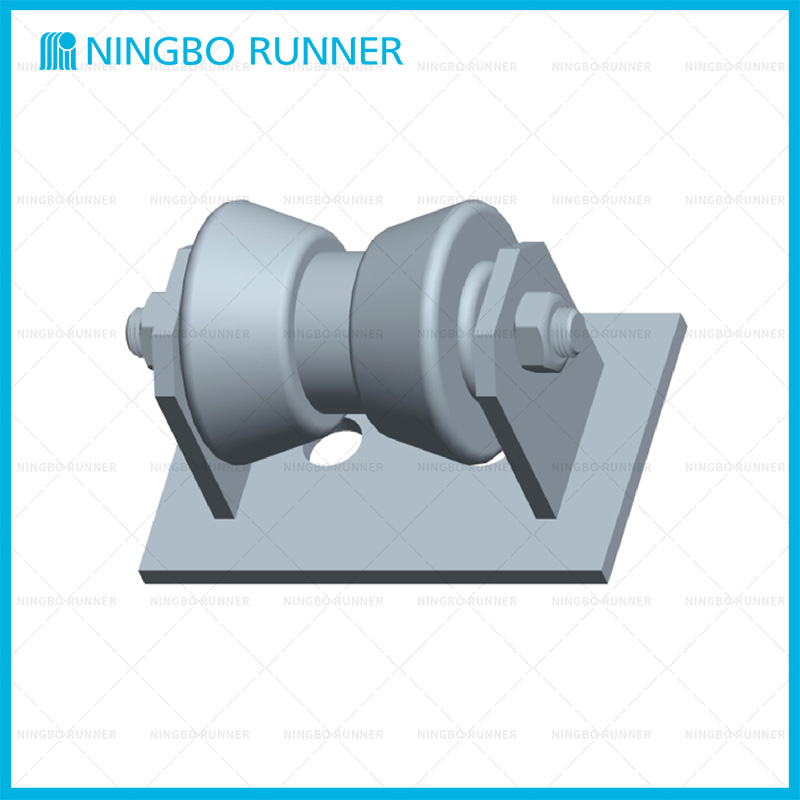

501904 Pipe Roller Stand

Model Number

Download Link
Parameter
Features
  • Material Steel Base with Cast Iron Roller
  • Transport Package Exported Package
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • Material: Steel Base with Cast Iron Roller
  • Finish: Plain or Hot Dipped Galvanized
  • Designed for Suspending Pipe Where Longitudinal Movement and Vertical Adjustment is required
  • Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
•    Material: Steel Base with Cast Iron Roller
•    Finish: Plain or Hot Dipped Galvanized
•    Designed for Suspending Pipe Where Longitudinal Movement and Vertical Adjustment is required
•    Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
