Product Name

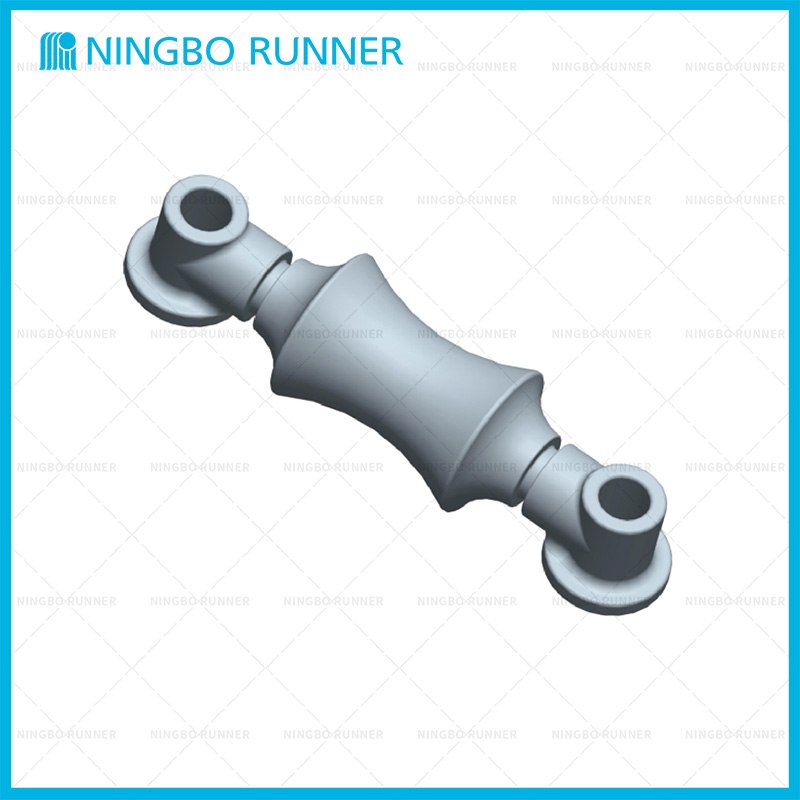

501903 Single Pipe Roller Support

Model Number

Download Link
Parameter
Features
  • Connection Flange
  • Structure Vertical
  • Flexible or Rigid Rigid
  • MaterialSteel Axle with Cast Iron Roller
  • Transport Package Exported Package
  • Material: Steel Axle with Cast Iron Roller
  • Finish: Plain or Hot Dipped Galvanized
  • Designed for Suspending Pipe Where Longitudinal Movement and Vertical Adjustment is required
  • Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
•    Material: Steel Axle with Cast Iron Roller
•    Finish: Plain or Hot Dipped Galvanized
•    Designed for Suspending Pipe Where Longitudinal Movement and Vertical Adjustment is required
•    Comply with Federal Specification WW-H-171E and American Manufactures Standardization Society MSS SP-69 & SP58
