Product Name

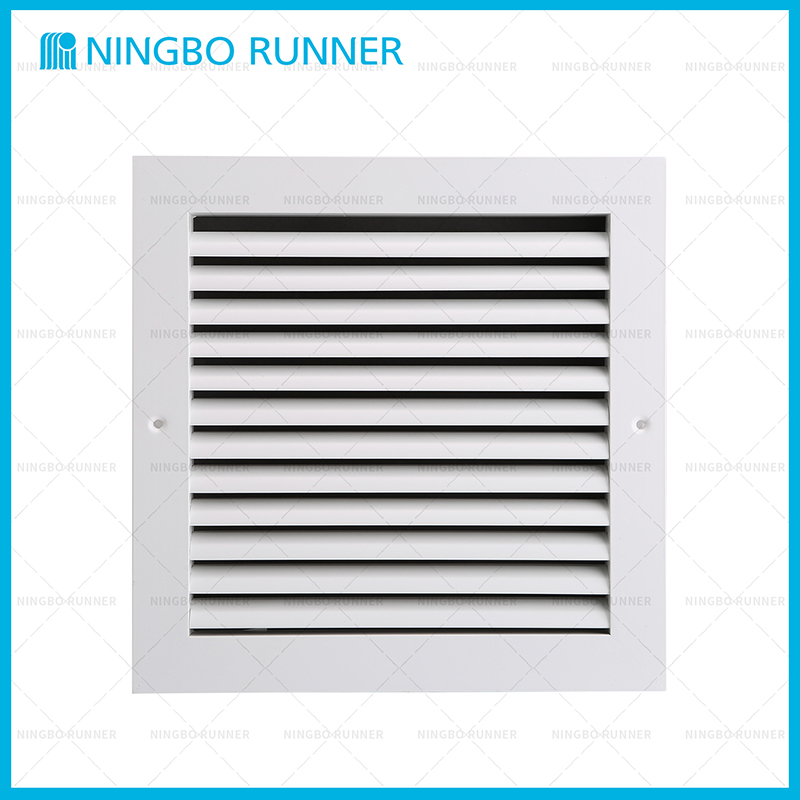

401405 Aluminum Return Air Grille

Model Number

401405

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignLouvered
  • MaterialAluminum

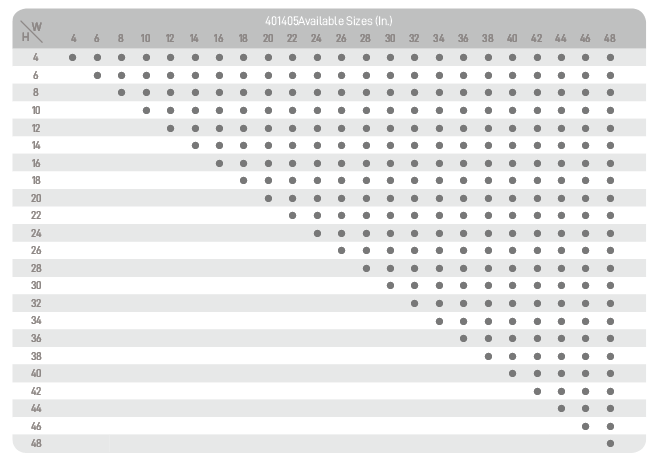

  • Duct Opening SizeWidth 4-48in; Height 4-48in
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Face bars permanently fixed
  • Available finish: White
