Product Name

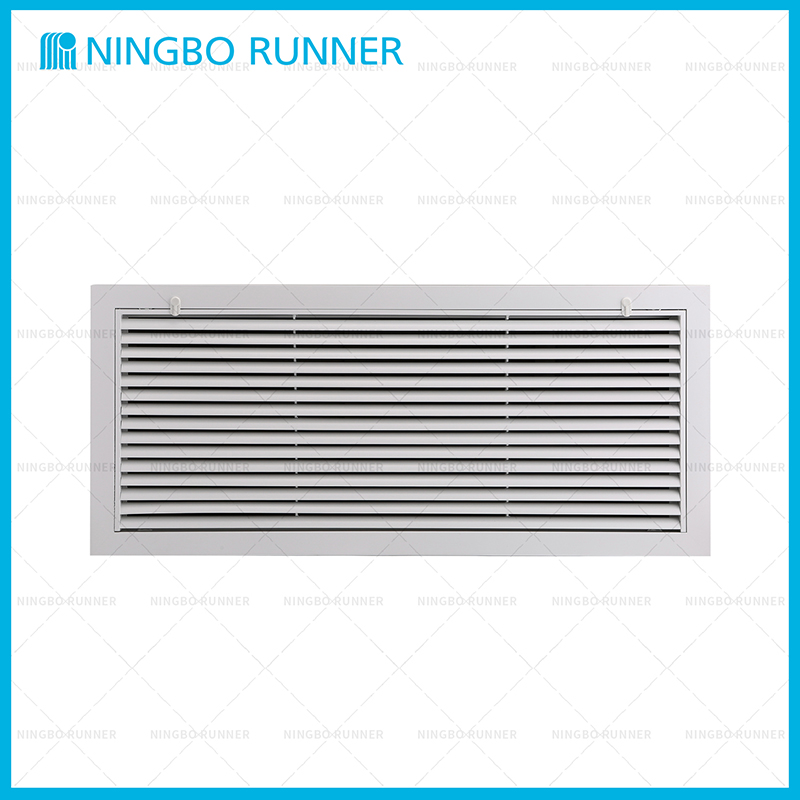

401513 Aluminum Return Air Filter Grill

Model Number

401513

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply or Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignLouvered
  • MaterialAluminum

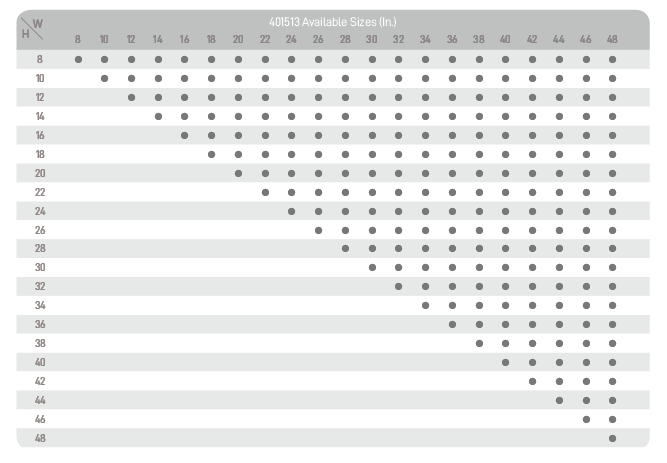

  • Duct Opening SizeWidth 8-48in; Height 8-48in
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Use nominal 1" thick filters (not included)
  • Filter grilles equipped with the rotated latch
  • Available Finish: White
