Product Name

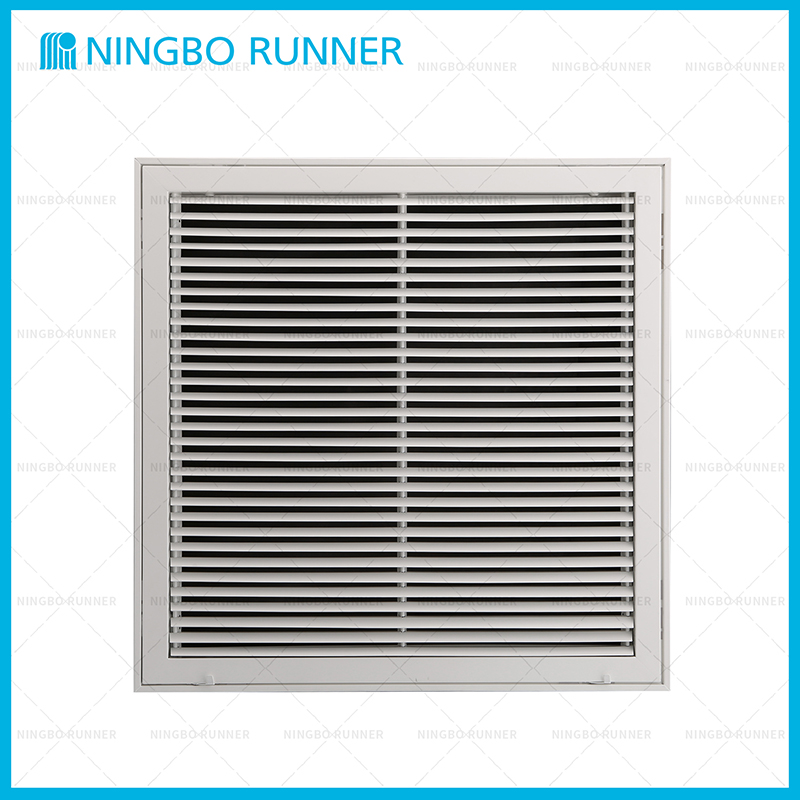

401507 Steel Fixed Bar Filter Grille

Model Number

401507

Download Link
Parameter
Features
Download
  • FunctionFor Air Supply or Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignLouvered
  • MaterialSteel

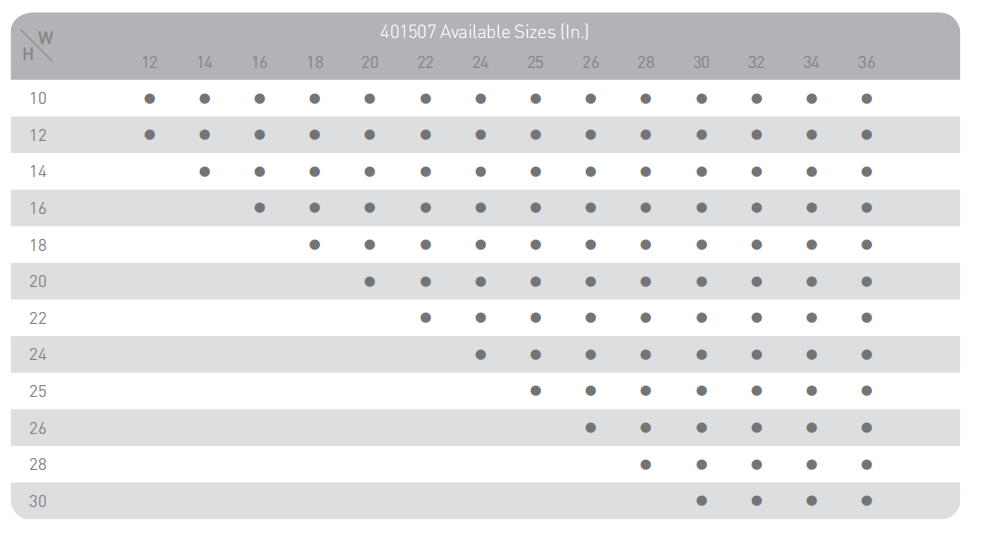

  • Duct Opening SizeWidth 12-36in; Height 10-30in
  • Steel construction
  • Removable hinged face for easy installation and cleaning
  • Use nominal 1" thick filters (not included)
  • Durable coating
  • Available finish: White
