Product Name

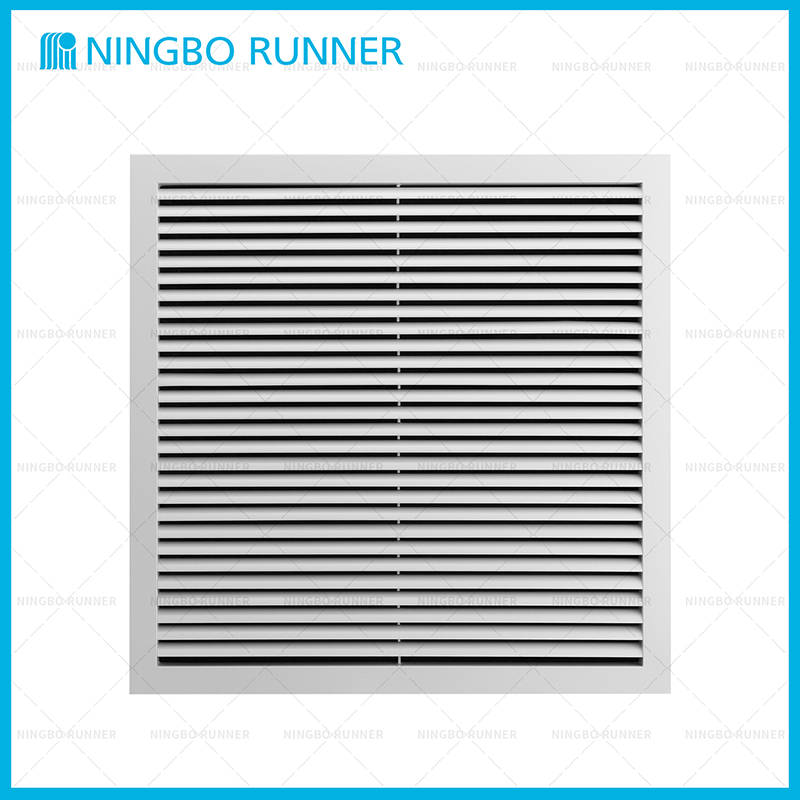

401405T T-Bar Aluminum Return Grille

Model Number

401405T

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignLouvered
  • MaterialAluminum

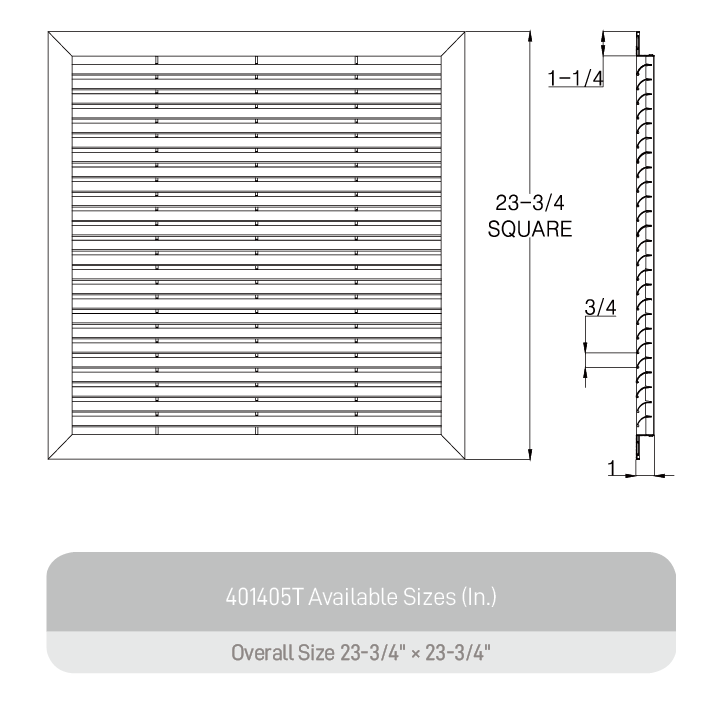

  • Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
  • Extruded aluminum constructtion
  • Fixed horizontal curved blades
  • Grille mounts flush with T-bar cellings
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish


Lanced Return Grilles

402208 T-Bar Steel Lanced Return Filter Grille

402208R6 T-Bar Steel Lanced Return Filter Grille with R6 Insulation

402210 T-Bar Steel Lanced Return Filter Grille

402210R6 T-Bar Steel Lanced Return Filter Grille with R6 Insulation

402405R6 T-Bar Deep Filter Frame with R6 Insulation

401513T T-Bar Aluminum Return Filter Grille
