Product Name

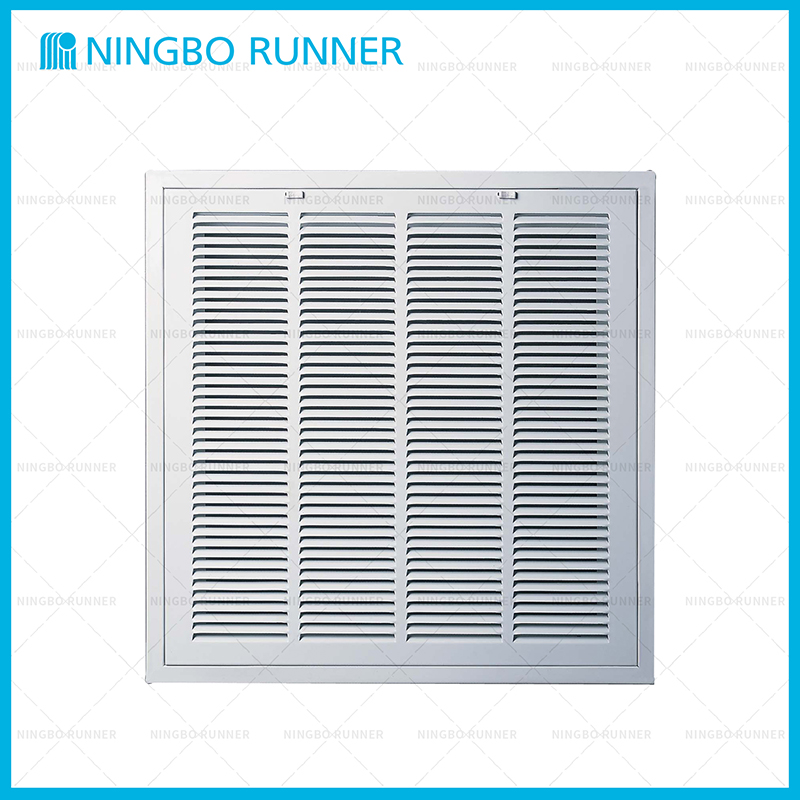

402405R6 T-Bar Deep Filter Frame with R6 Insulation

Model Number

402405R6

Download Link
Parameter
Features
Download
  • FunctionFor Air Return
  • Surface TreatmentElectrical Deposition+ Powder Coating
  • ColorWhite
  • DesignLanced
  • MaterialSteel

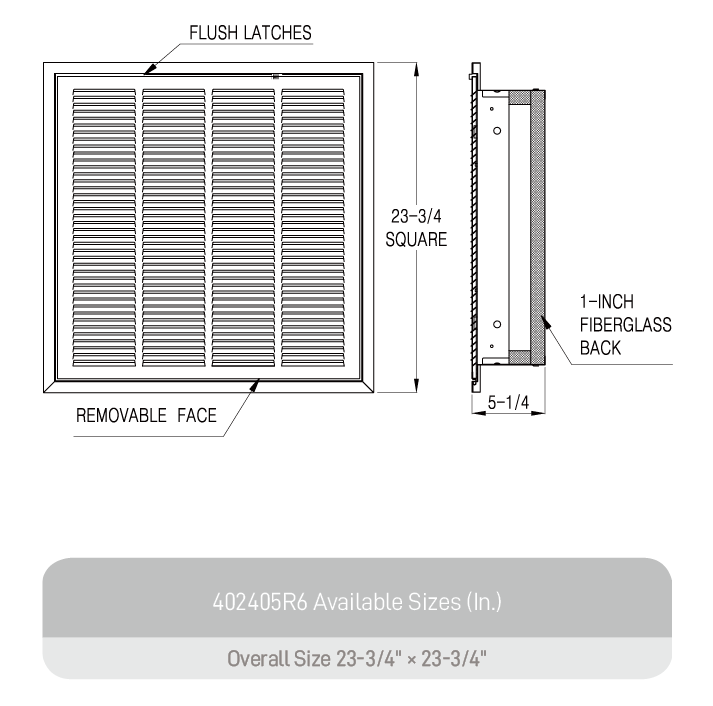

  • Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
  • Steel construction
  • Use for T-Bar ceiling
  • 1/2' or 1/3' spaced fins can accept
  • Lanced faceplate
  • With R6 insulation
  • Accomodates 1' and 2' deep filters
  • Fiberglass backpan with 6'-16' targets
  • Eliminates need for shop fabricated transitions for ductwork
  • Overall size 23-3/4'×23-3/4' (24“×24" openings)
  • White durable finish
